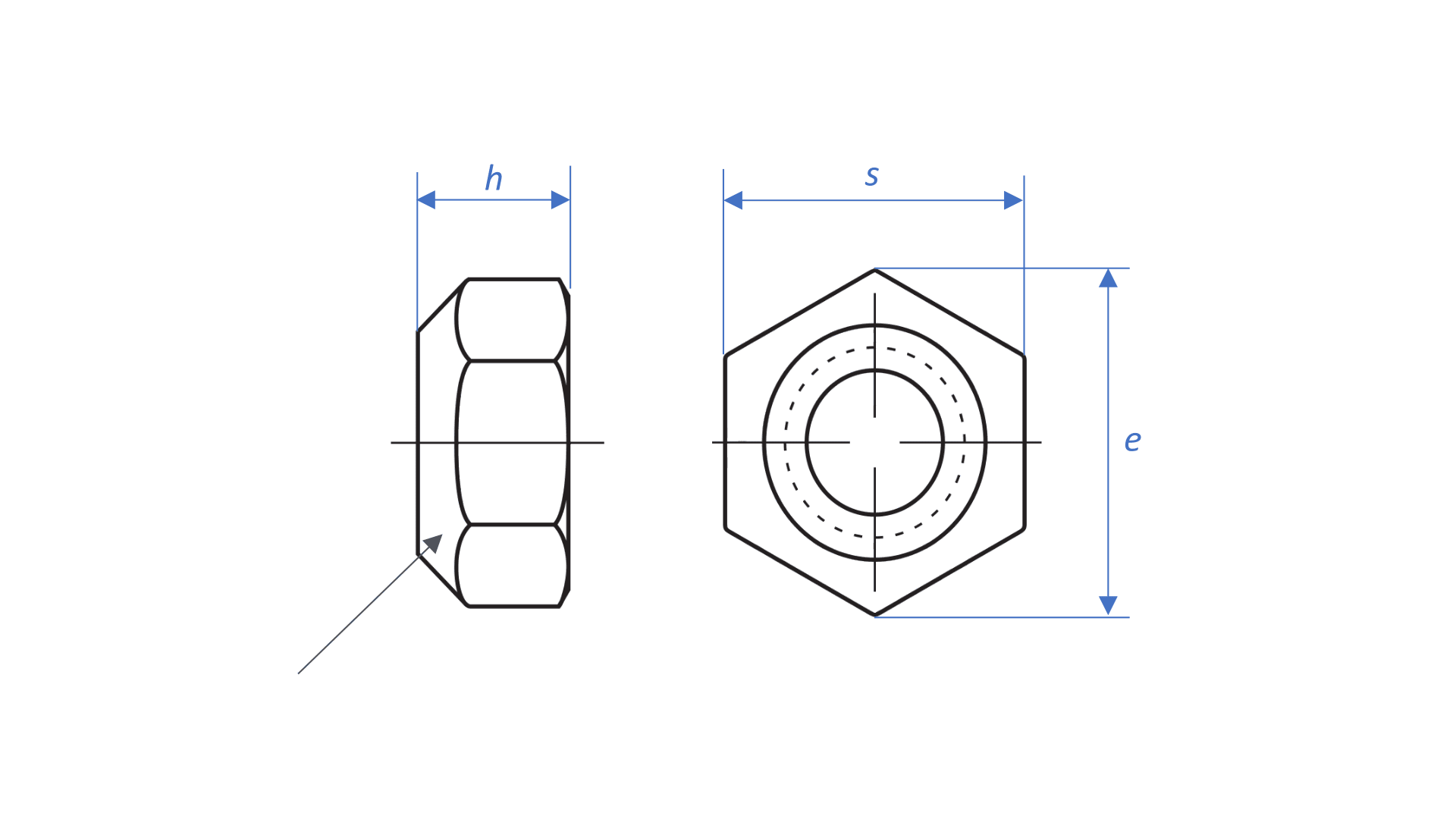

The shape, form and design of prevailing torque element (marked with arrow) at the manufacturer’s discretion.
Dimensions for selected sizes
| Size | M12 | M16 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 |
|---|---|---|---|---|---|---|---|---|---|---|
| Pitch | 1.75 | 2 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 |
| h (min-max) | 11-12 | 14-16 | 18-20 | 20-22 | 22-24 | 25-27 | 28-30 | 31-33 | 34-36 | 37-39 |
| s (min-max) | 18.67-19 | 26.67-24 | 29.16-30 | 31-32 | 35-36 | 40-41 | 45-46 | 49-50 | 53.8-55 | 58.8-60 |
| e (min.) | 21.1 | 26.75 | 32.95 | 35.03 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 |
Dimensions in millimetres
